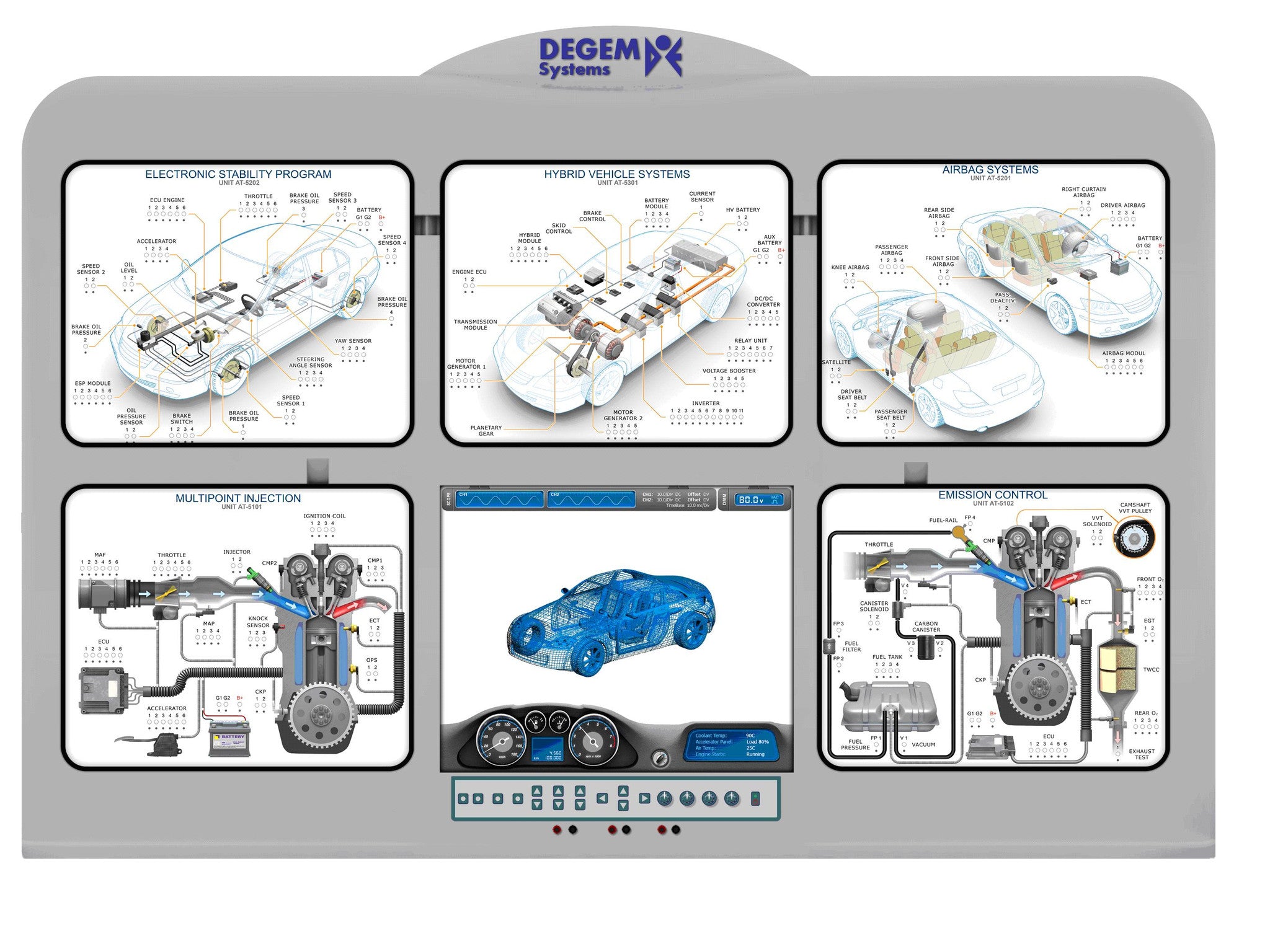

This unique training system houses five different plug-in simulator modules,?é?ásold separately, and a central control module, which comprises a 19 color LCD monitor, 14 push buttons, and four rotary controls. The function of each rotary control is dynamically set by the system's software according to the specific needs of each lesson. Virtual instruments, including a digital multimeter and oscilloscope, are simulated on the LCD monitor and provide realistic diagnostic measurement facilities.
?é?á
We carry limited stock of this item, so standard lead time for more than one unit is 60 days for this item. ?é?áPlease contact us for more information at service@hbarsci.com.
?é?á
Note: The unit requires at least one simulator module from below.
?é?á
Simulator Modules Available Separately:
Multipoint Fuel Injection Module - Item # ?é?áAT-5101
This training simulator is a comprehensive instructional module that plugs directly into the Advanced Autotronics Simulator workstation, designed to train students on modern multipoint fuel injection systems. The topics covered on this board include: MAP and MAF sensors, motorized throttle, injectors, DIS ignition coils, CMP: Hall Effect camshaft position sensor, CKP: inductive crankshaft position sensor, knock sensor, accelerator position Hall Effect sensor, engine electronic control unit (ECU), and troubleshooting exercises. The simulator comes with interactive courseware which contains essential theory enhanced with vivid simulations, guided exercises that interact with the Multipoint Fuel Injection simulator, guided diagnostic exercises and self-assessment exercises.?é?á
Emission Control Module - Item # AT-5102
The Emission Control training simulator is a comprehensive instructional module that plugs directly into the Advanced Autotronics Simulator workstation designed to train students on modern automotive emission control systems. The topics covered on this board include: Fuel tank, fuel pump and fuel filters, variable valve timing (VVT), front and rear O2 sensors, carbon canister and purge valve, EGT: exhaust gas temperature sensor, exhaust gas analyzers, three way catalytic converters, and troubleshooting exercises.
The simulator comes with interactive courseware which contains essential theory enhanced with vivid simulations, guided exercises that interact with the Emission Control simulator, guided diagnostic exercises and self-assessment exercises?é?á
Airbag Systems Module - Item # AT-5201
This comprehensive instructional module plugs directly into the Advanced Autotronics Simulator workstation designed to train students on modern automotive airbag safety systems. The topics covered on this board include: Airbag construction and operation, pyrotechnic seatbelt actuation, airbag electronic control unit, accelerometers, passenger and driver dual detonator airbags, knee and curtain airbags, satellite side impact sensor, passenger deactivation switches, and troubleshooting exercises. The simulator comes with interactive courseware which contains essential theory enhanced with vivid simulations, guided exercises that interact with the Airbag Systems simulator, guided diagnostic exercises and self-assessment exercises.?é?á
Electronic Stability Program Module - Item # AT-5202
This comprehensive instructional module plugs directly into the Advanced Autotronics Simulator workstation designed to train students on modern automotive electronic stability systems. The topics covered on this board include: Electronic stability control systems, wheel speed sensor, yaw (vehicle rotation) rate sensor, steering wheel angle optical sensor, brake oil pressure sensor, brake pedal switch, throttle position sensor, ESP control module for the hydraulic unit, and troubleshooting exercises. The simulator comes with interactive courseware which contains essential theory enhanced with vivid simulations, guided exercises that interact with the Electronic Stability Program simulator, guided diagnostic exercises and self-assessment exercises.?é?á
Hybrid Vehicle Systems Module - Item # ?é?áAT-5301
This comprehensive instructional module plugs directly into the Advanced Autotronics Simulator workstation designed to train students on modern hybrid vehicle systems. The topics covered on this board include: Nickel metal battery characteristics, charging battery with motor-generator #1, starting engine with motor-generator #1, driving performance with motor-generator #2, regenerative braking with motor-generator #2, DC-DC booster for main electric drive, DC to 3 phase AC variable frequency inverter, 12 VDC converter for accessory battery, current sensors, hybrid electronic control unit, and troubleshooting exercises. The simulator comes with interactive courseware which contains essential theory enhanced with vivid simulations, guided exercises that interact with the Hybrid Vehicle simulator, guided diagnostic exercises and self-assessment exercises.
