Eisco Labs | SKU CBD17

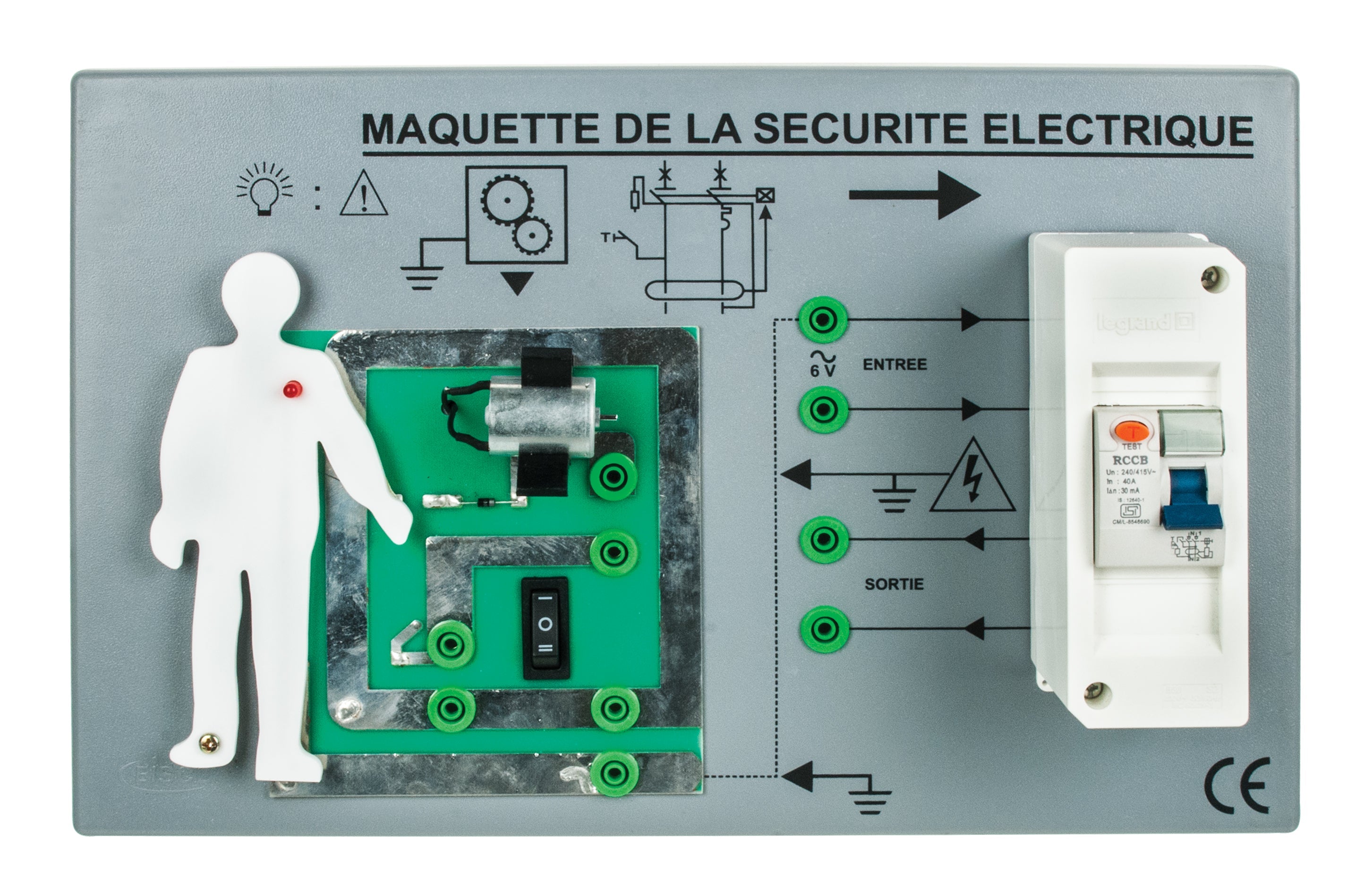

Circuit Breaker Demonstration Apparatus

Name: Circuit Breaker Demonstration Apparatus
Brand: Eisco Labs
SKU: CBD17
Price: 576.99 USD
Availability: InStock

Circuit breaker demonstration wired for 6V AC that mimics the behavior of a 230V AC installation, showing how a differential breaker trips under grounded-fault conditions.

$576.99

~~$576.99~~

Backorder
Free US Shipping $100+ 30 Day Free Returns

Product Description

This Circuit Breaker Demonstration model explains the role of a differential circuit breaker and the importance of grounding an electrical installation. The apparatus supplies 6V AC (simulating 230V AC) to run a DC motor under safe conditions, using a metal frame to demonstrate fault conditions. Students observe how the circuit breaker trips when a fault is detected, reinforcing concepts in electrical safety, grounding, and overcurrent protection. Suitable for physics and technology classrooms studying electrical circuits and safety systems.
