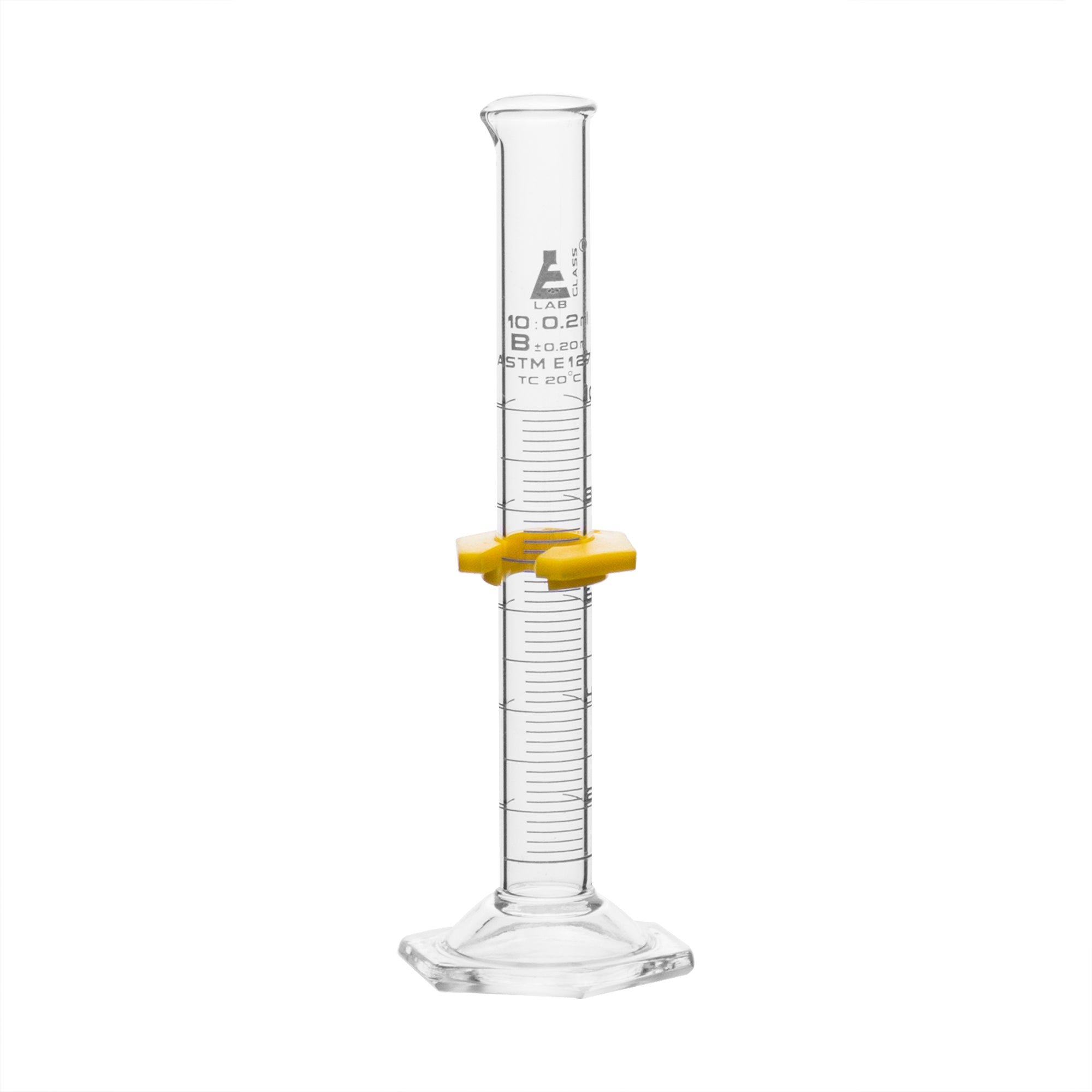

Class B Borosilicate Glass Graduated Cylinder with Protective Collar, White Graduations

• Material: 3.3 Borocilicate Glass
• Class: Class B
• Capacity: 10 ml
• Graduation: 0.2 ml
• Tolerance: ±0.20 ml
• Guard: Yes
• Thermal Properties

Coefficient of Linear Expansion: 32.5 x 10⁻⁷ / C°

• Strain Point: 515°C
• Annealing Point: 565°C
• Softening Point: 820°C
• Specific Heat: 0.2
• Thermal Conductivity (Cal/cm3°C/Sec): 0.0027
• Chemical Durability

Contact Chemical: Duration (hours)

Loss in weight (mg/m²)

• Water distilled at 100°C: 6

10

• Water vapour steam at 121°C: 1

75

• Acid HCl: 6

100

• 80% H₂SO₄ at 130°C: 12

140

• Alkali -1N solution of Na₂CO₃ boiling: 6

4000

• Isotonic infusion Fluids

NaCl (0.85%) at 121°C: 2.5

70

Glucose (5%) at 121°C

2.5

50

• Dimensions (L × W × H): 1.75" × 1.75" × 5.50" (4.45cm × 4.45cm × 14.0cm)
• Weight: 0.10 lbs (45g)
