Spherometer for Surface Curvature Measurement

Eisco Labs | SKU PH0092

Spherometer for Surface Curvature Measurement

Three-legged spherometer with legs spaced 40 mm apart and a vertical scale reading -10 to +10 mm at 0.01 mm resolution, calculating radius of curvature for round and spherical optical surfaces.

$31.59

Backorder
Free US Shipping $100+ 30 Day Free Returns

Product Description

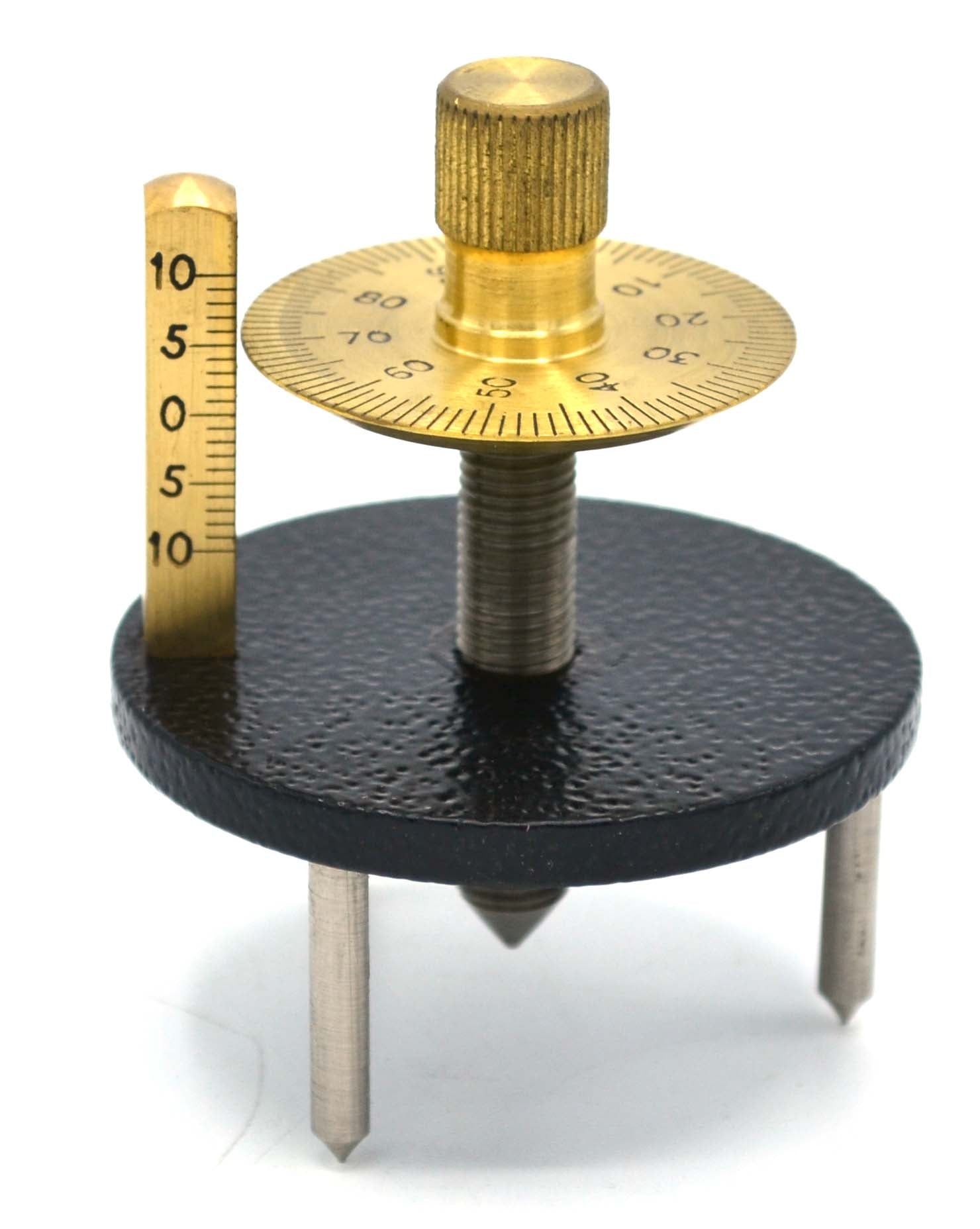

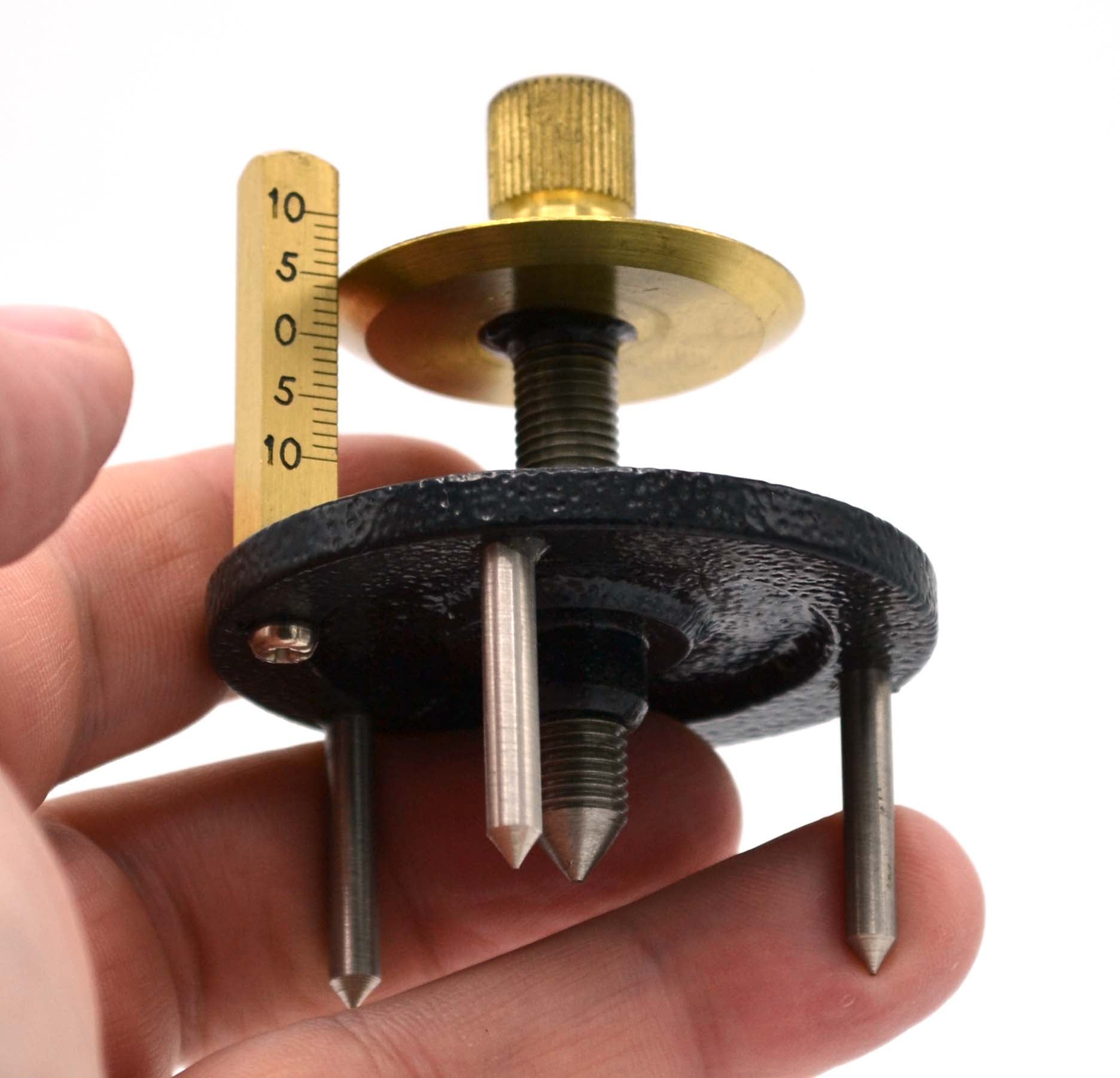

This spherometer measures the radius of curvature of round or spherical surfaces using a three-point geometry with legs 40mm apart and one center screw. The vertical scale ranges from -10 to +10mm with 0.01mm graduation resolution. By calibrating the relationship between vertical and horizontal scales, students can calculate the radius of curvature of lenses, mirrors, and other curved surfaces. This instrument reinforces measurement precision and geometric principles. Suitable for physics classrooms.

Specifications

Dimensions (L × W × H): 2.50" × 2.50" × 3.00" (6.35cm × 6.35cm × 7.62cm)
Weight: 0.30 lbs (136g)
