Manometer without Stopcock

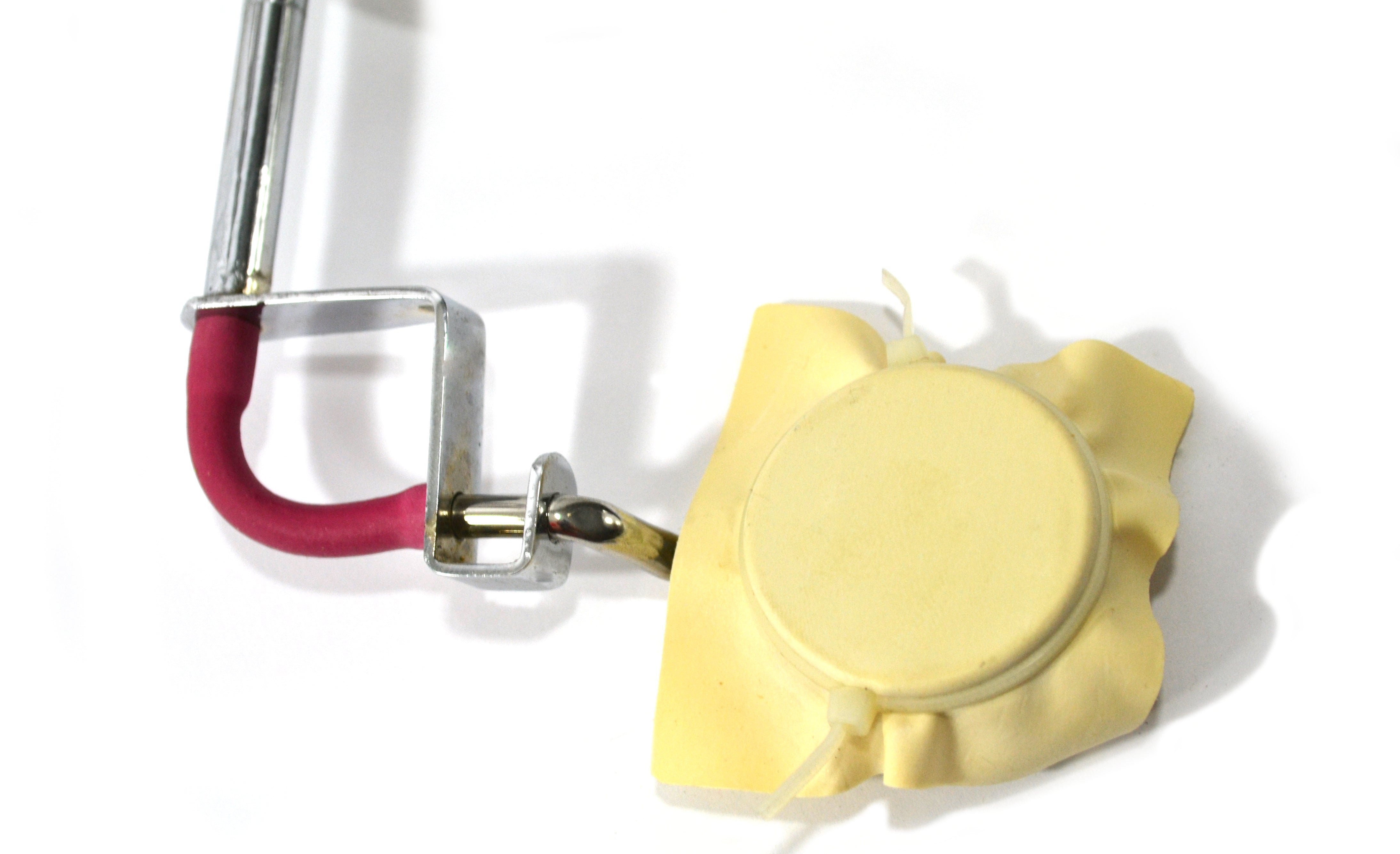

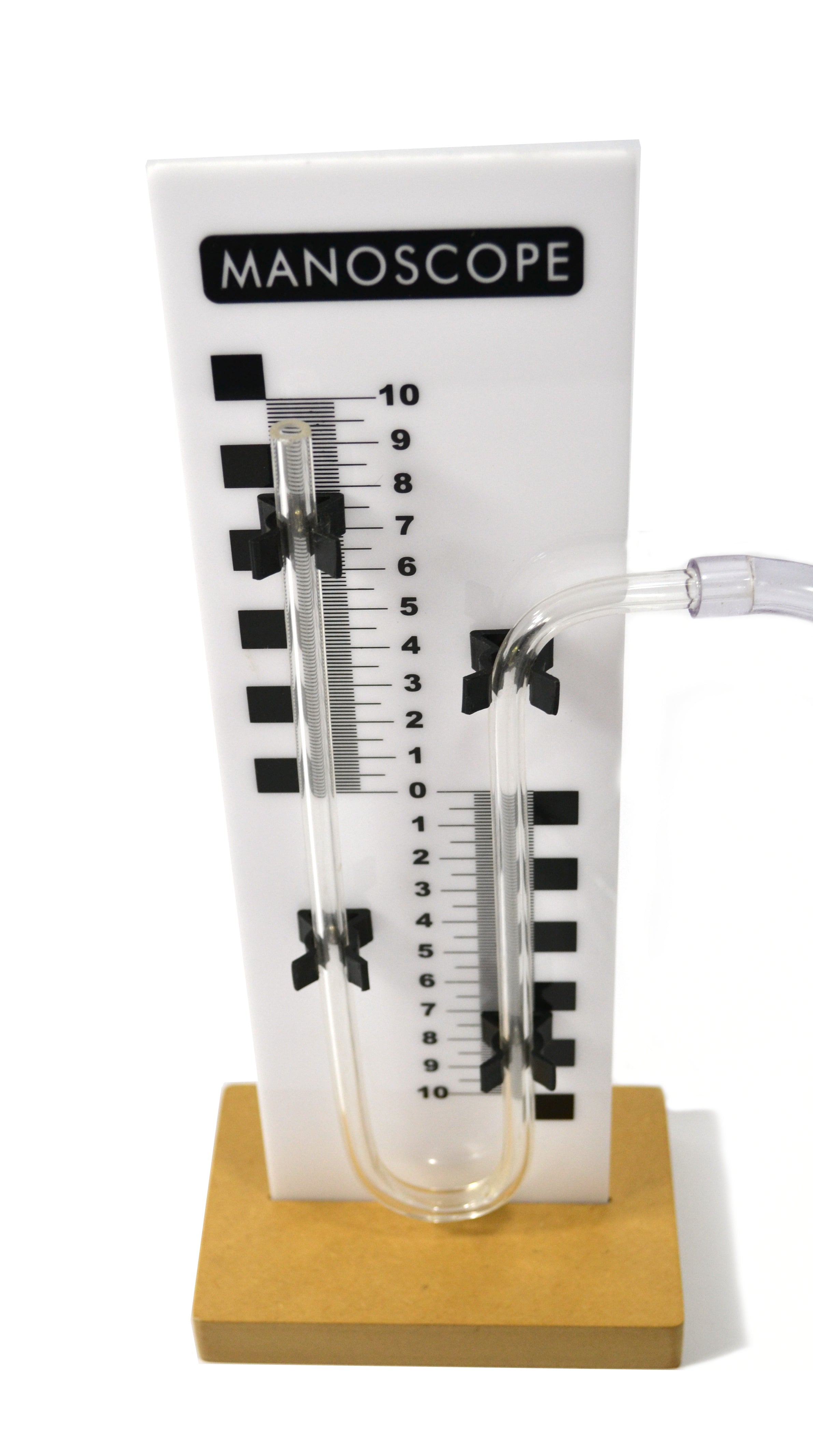

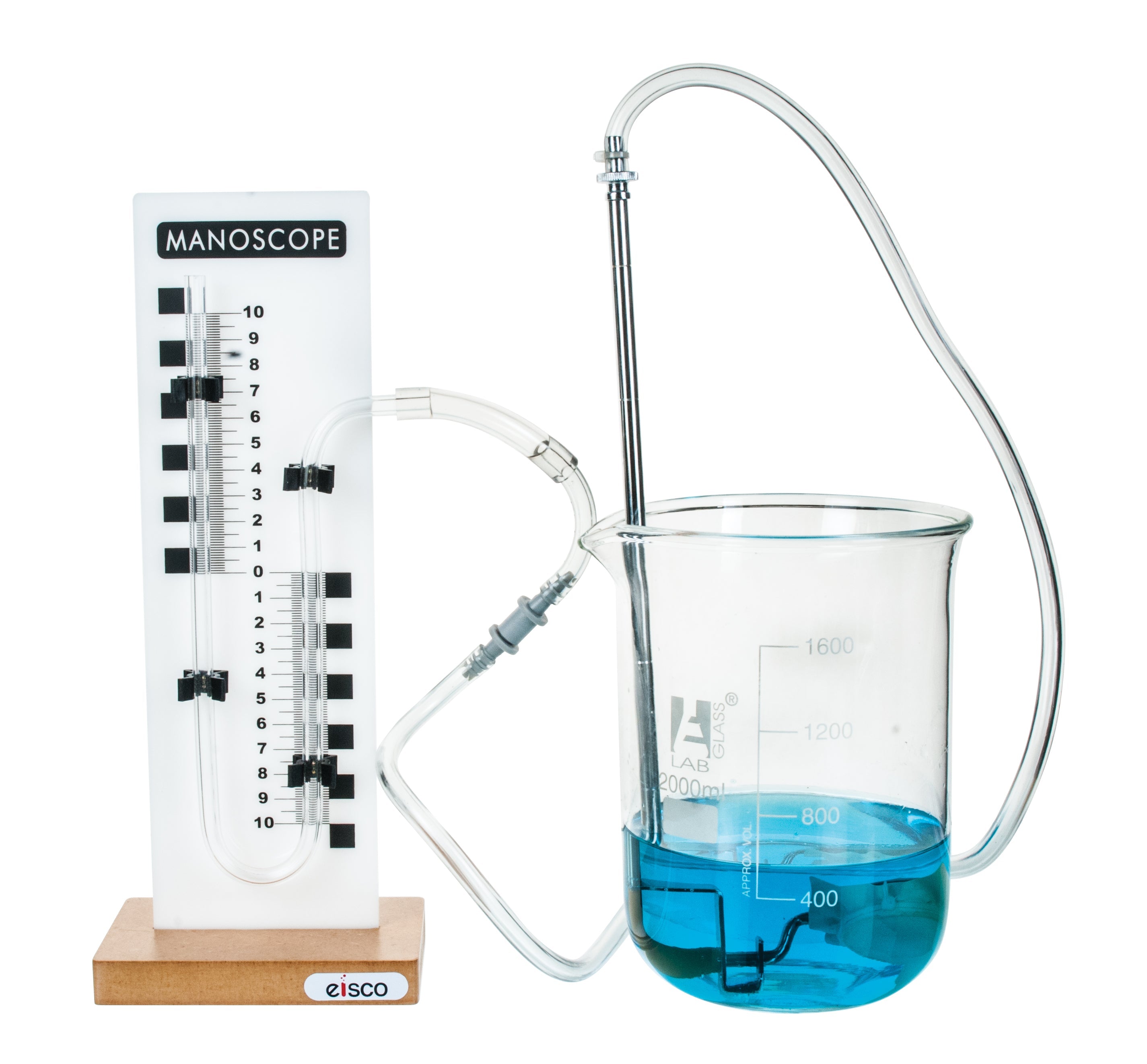

This manometer (supplied without stopcock) is designed to measure the variation of pressure in a liquid with depth. It consists of a 35mm diameter pressure capsule placed in a bent steel tube, connected to a pressure gauge mounted on a graduated support via transparent flexible tubing. The support features cm-increment measurements from 0 to 10cm, and the manometer tube is slidable on the support for zero-point adjustment. A device is included for turning the capsule without removing it from the water. The base measures 5" x 3.25" x 0.63" with a total height of 12.5". The outer rubber tubing diameter is 0.3475" and the outer glass tubing diameter is 0.3240". Supplied without beaker.
