Eisco Labs | SKU PH1150L

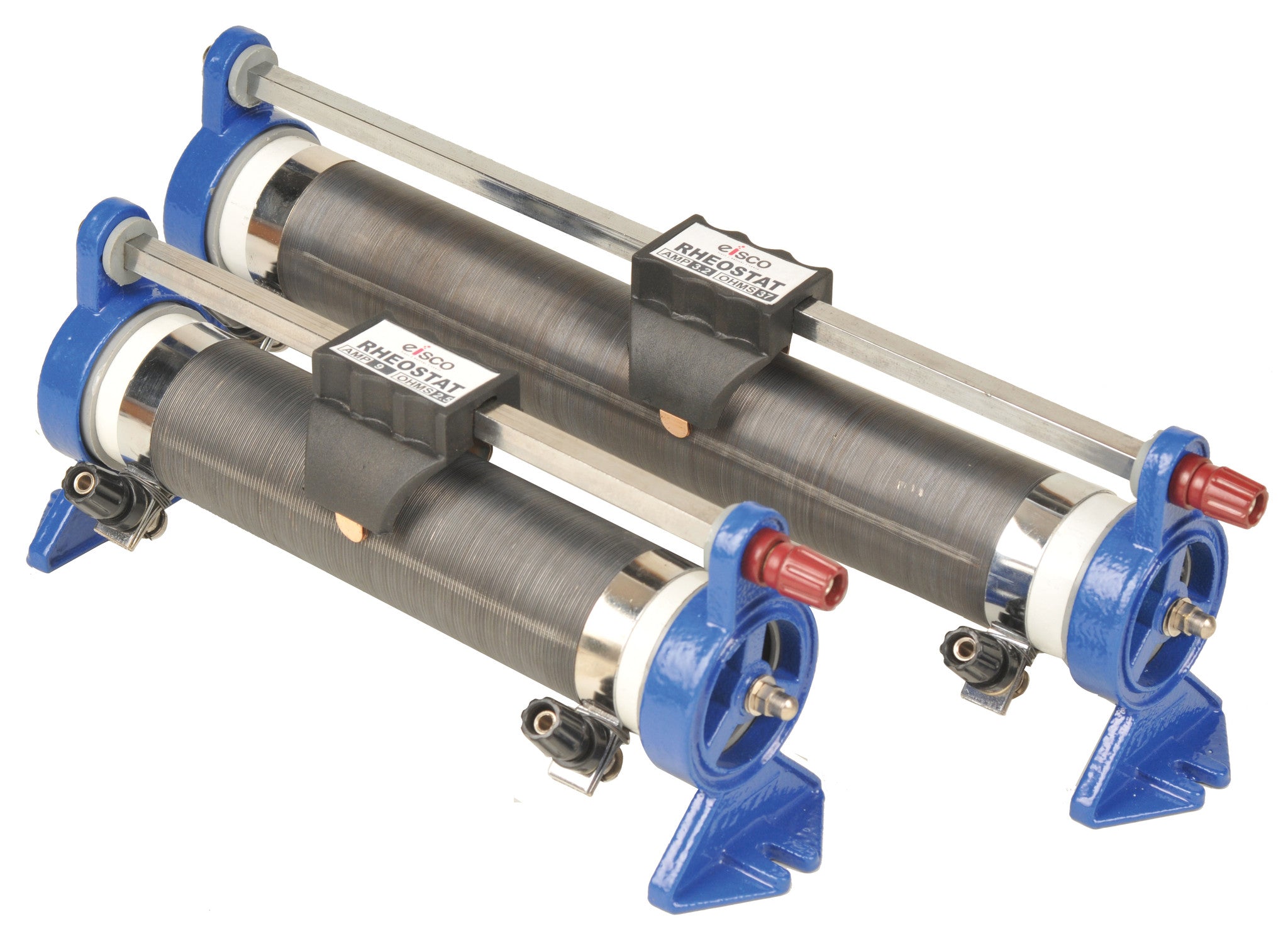

Standard Rheostat, 4.5Ω, 9A Max

Four-point-five-ohm 9A standard rheostat with constantan winding on a vitreous-enameled steel tube, the low-resistance high-current option paired with PH1150H in the heavy-load family.

$122.99

Low Stock (3)
Free US Shipping $100+ 30 Day Free Returns

Product Description

This standard rheostat has a resistance of 4.5 ohms and a maximum current rating of 9A. The rheostat is wound with heavily oxidized constantan (copper-nickel alloy) wire on a vitreous enameled steel tube supported on die-cast ends. A heavy-duty sliding contact made of nickel-plated phosphor bronze provides corrosion resistance. Two 4mm terminal posts facilitate external connection with conventional 4mm plugs. Suitable for physics and electronics laboratories studying variable resistance, current control, and circuit experiments.

Specifications

Dimensions (L × W × H): 12.00" × 4.50" × 4.50" (30.5cm × 11.4cm × 11.4cm)
Weight: 2.10 lbs (953g)
