Eisco Labs | SKU PH1338

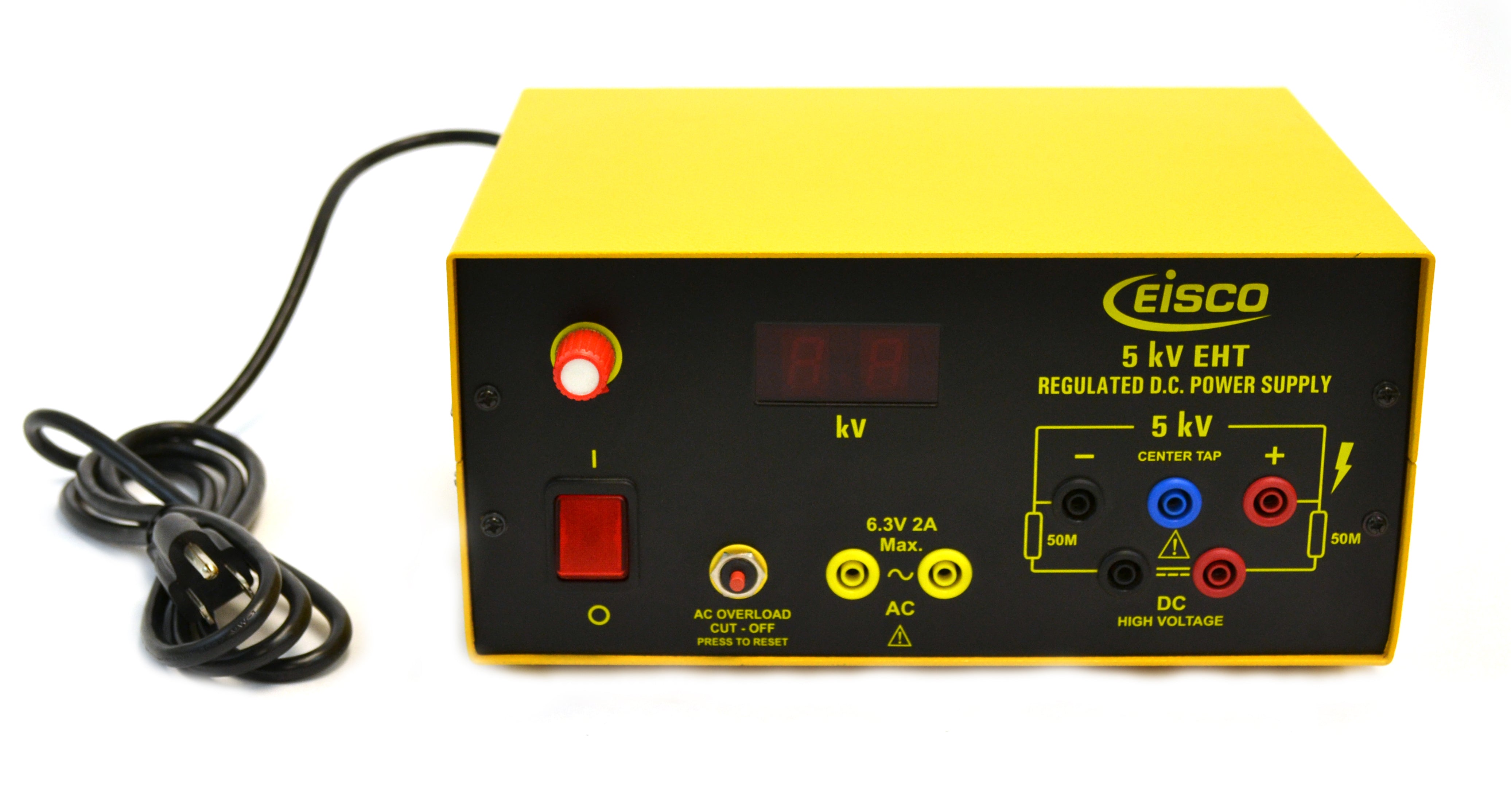

Extra High Tension (EHT) Power Supply, 100V-5kV DC with 6.3V AC

Continuously variable 100V-5kV output shown on a 0-5kV digital voltmeter, this EHT supply adds a center-tapped ±2.5kV socket and a 6.3V 2A AC filament line for cathode-ray experiments.

$460.99

Backorder
Free US Shipping $100+ 30 Day Free Returns

This item will take up to 90 days to be shipped.

Product Description

This extra-high-tension (EHT) regulated DC power supply provides a continuously variable output from 100V to 5kV at 3mA, displayed on a 0–5kV digital voltmeter. The EHT circuit is fully floating so either output terminal may be tied to ground for specific applications, and a center-tapped socket delivers ±2.5kV output. An additional pair of 4mm sockets at 19mm spacing supplies 6.3V AC at 2A for filament heating. The supply is housed in a metal case with an illuminated on/off switch, operates on 220/240V AC at 50Hz, and measures 26 x 23 x 11cm. Intended for use by trained instructors in physics teaching laboratories.

Specifications

Dimensions (L × W × H): 13.80" × 11.80" × 9.80" (35.1cm × 30.0cm × 24.9cm)
Weight: 9.80 lbs (4.45kg)
