Eisco Labs | SKU PH1346A

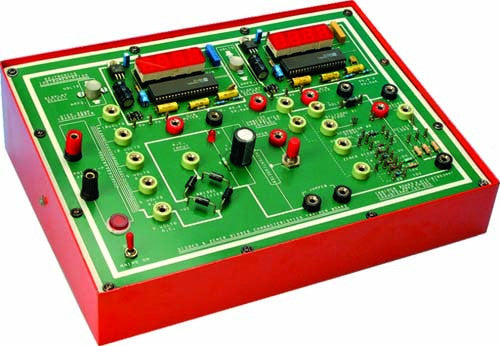

Diode and Zener Diode Characteristics Trainer Board

Used to plot V-I characteristics of silicon diodes and Zener diodes in both forward and reverse bias, this trainer board provides a hands-on platform for semiconductor-curve student work.

$622.99

Backorder
Free US Shipping $100+ 30 Day Free Returns

Product Description

This general-purpose trainer board demonstrates the characteristics of diodes and Zener diodes. The board provides a hands-on platform for studying the voltage-current relationship of semiconductor diodes in both forward and reverse bias conditions. Suitable for electronics and physics instruction covering semiconductor devices, rectification, and voltage regulation principles.
