Power Transmission Line Apparatus for Grid Simulation

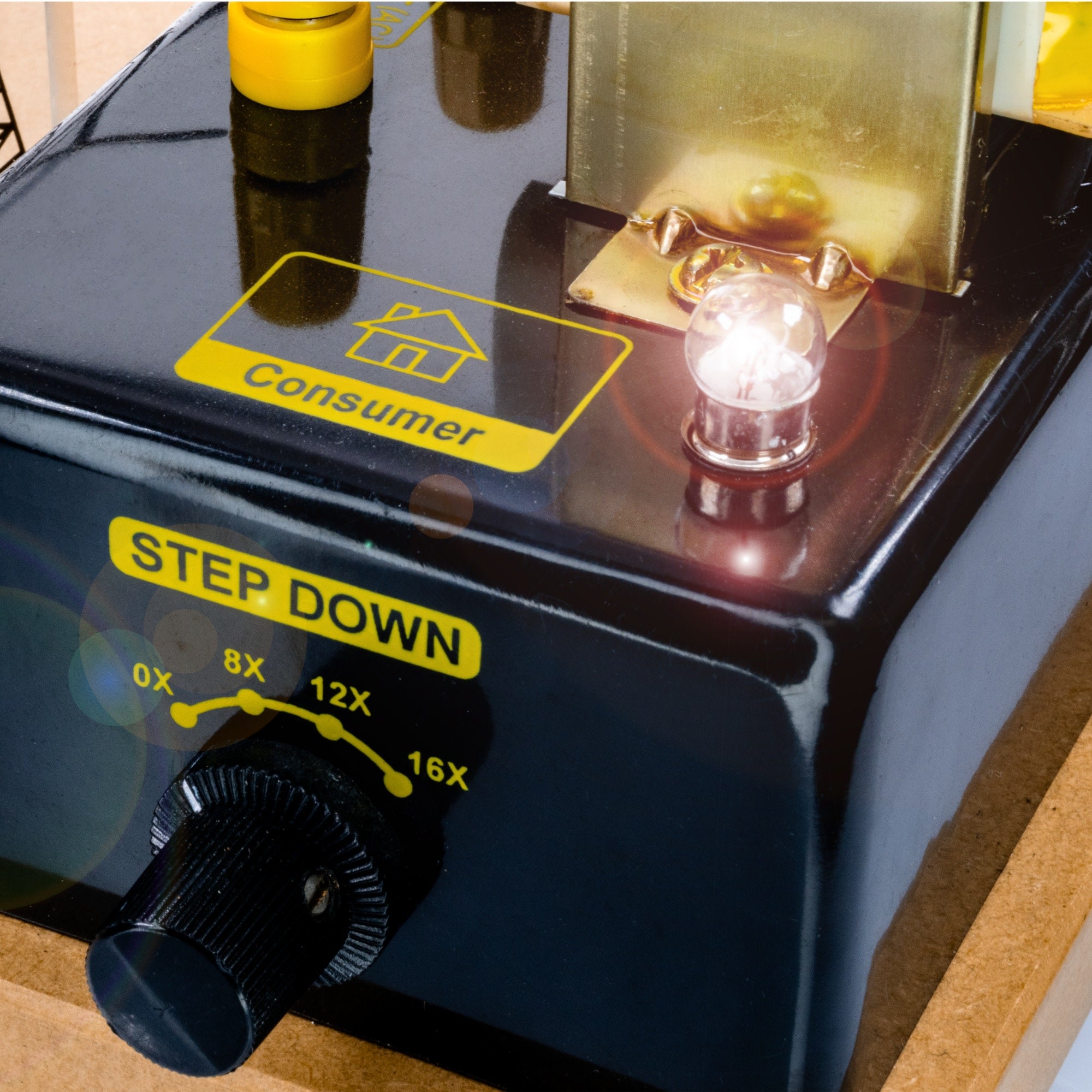

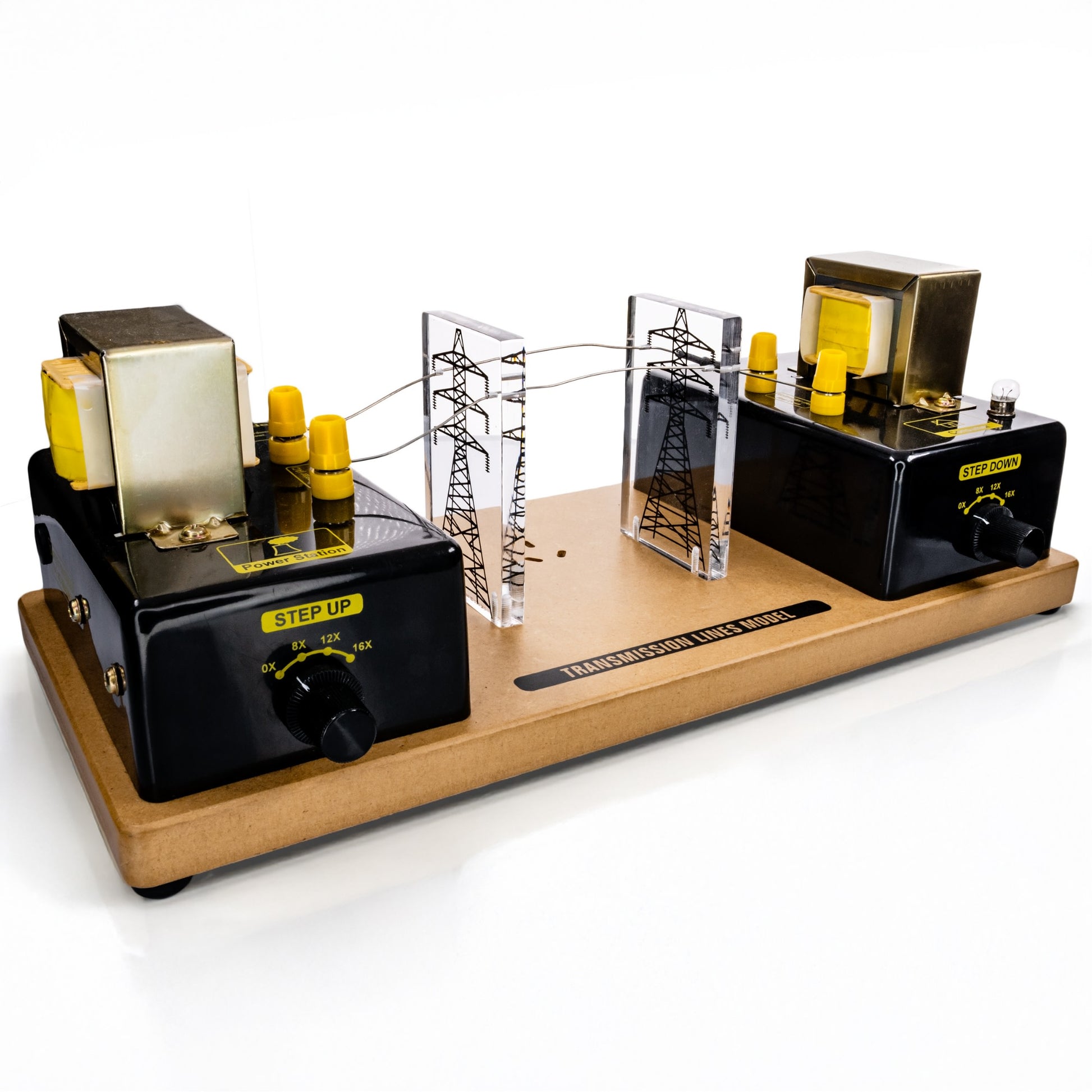

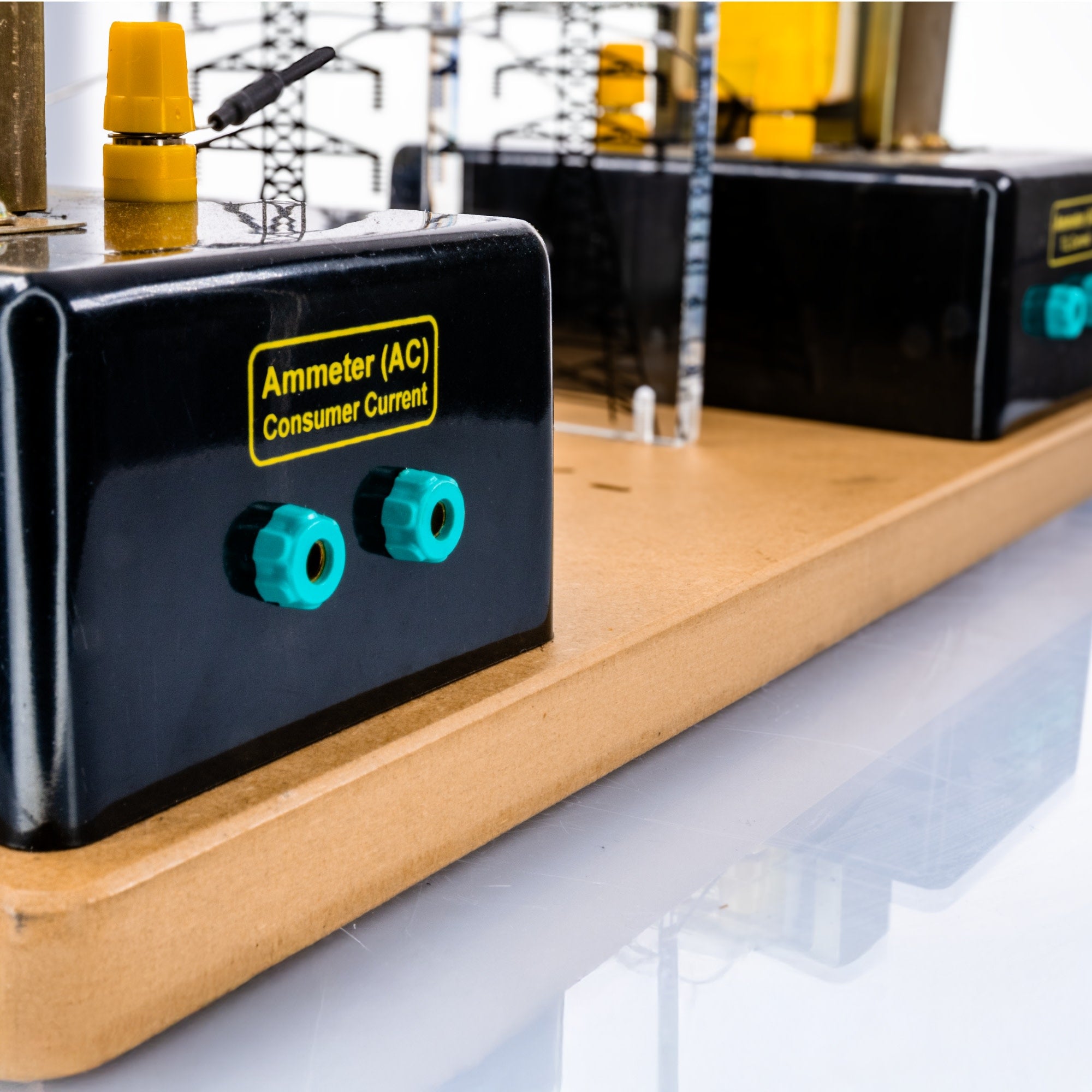

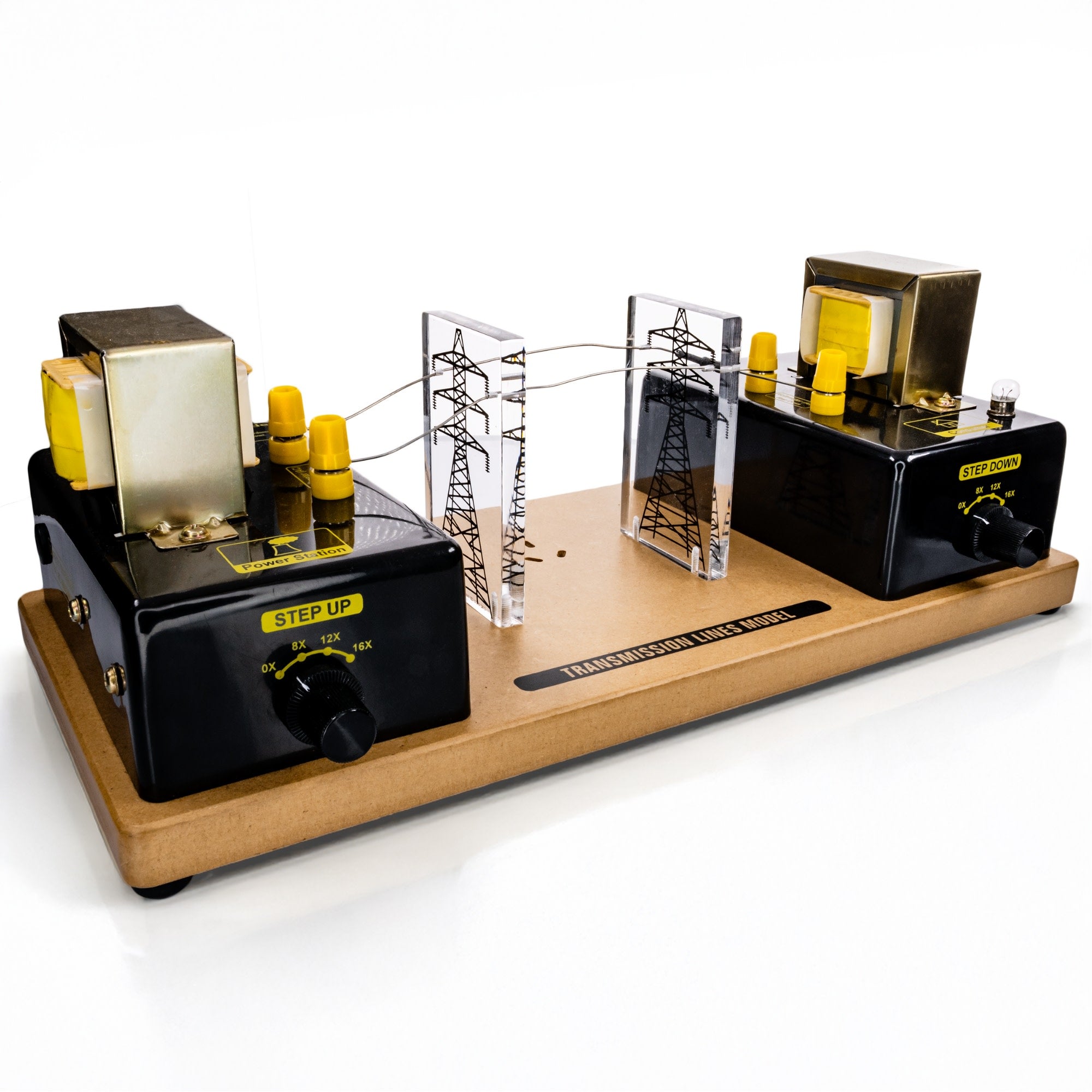

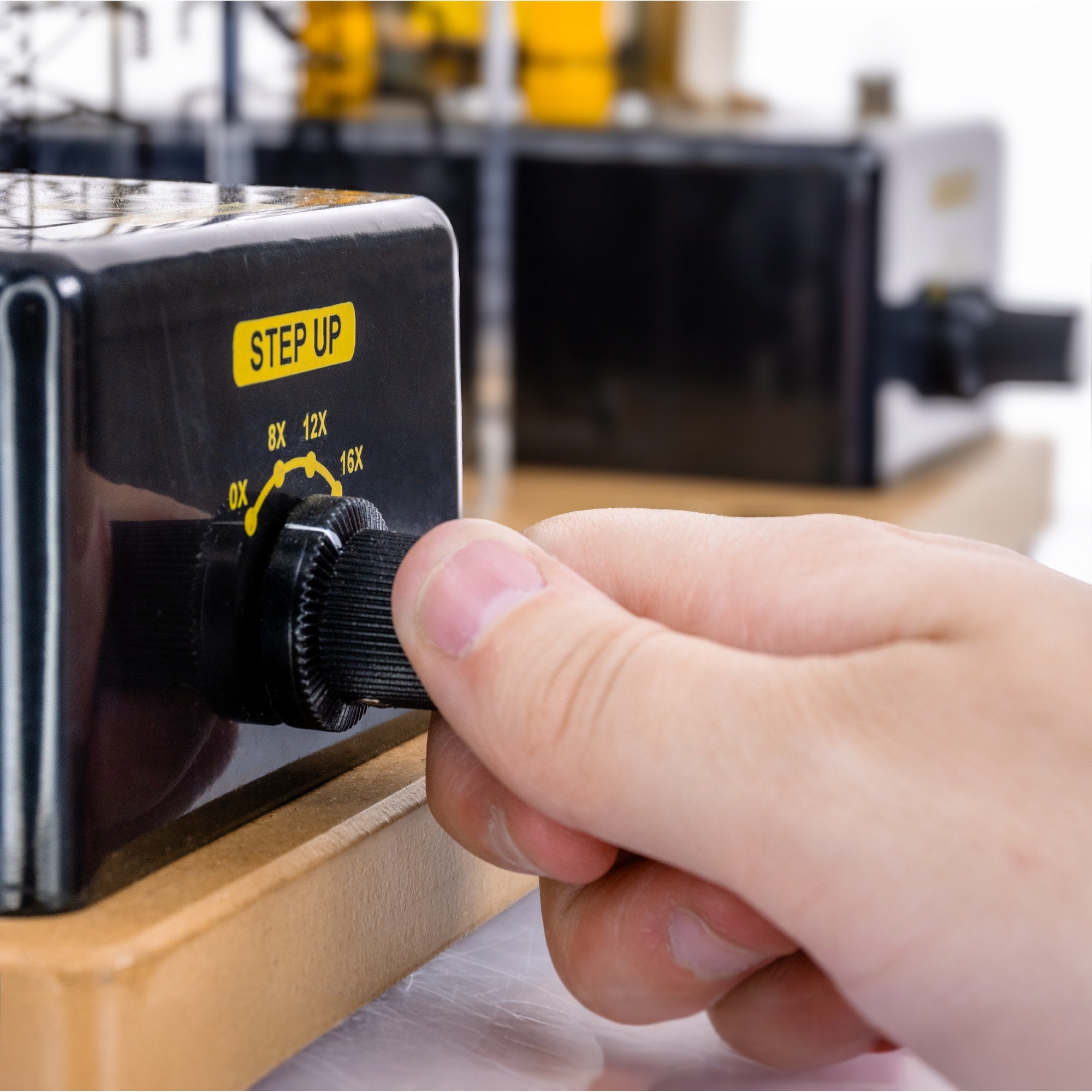

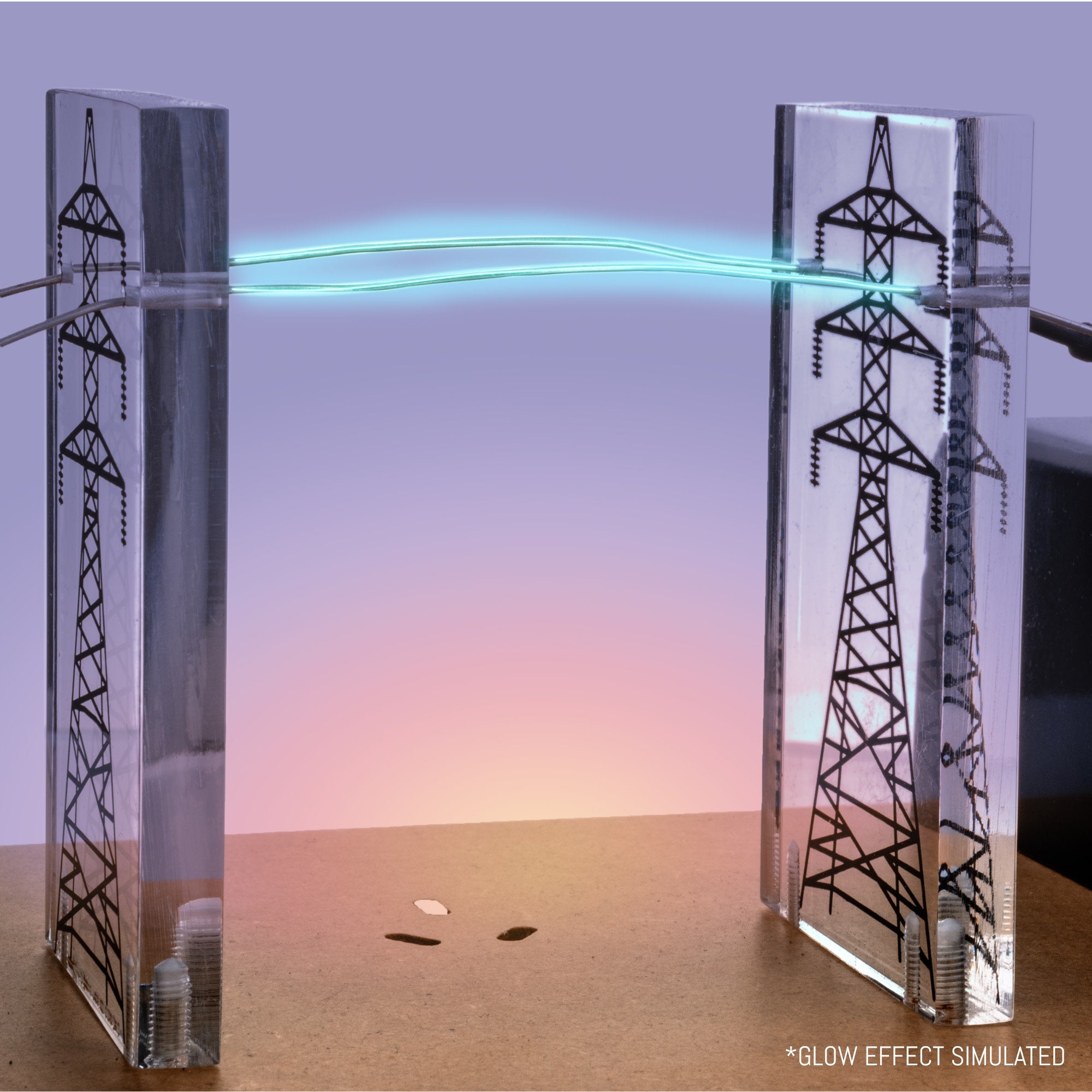

The Eisco Power Transmission Line Apparatus is a comprehensive educational tool that simulates an electrical power grid to demonstrate why electricity is stepped up to high voltages for long-distance transmission and stepped down for safe consumer use. The model includes a simulated 3V power station, a step-up transformer (to ~24V), copper transmission lines with added resistance, a step-down transformer, and a 2.5V bulb consumer load. Two clearly labeled switches let instructors quickly toggle between scenarios with and without voltage transformation, making power loss differences immediately visible. Multimeters (not included — recommended pair as AC ammeters and pair as AC voltmeters) allow quantitative measurement of currents and voltages at the power station, along the transmission lines, and at the consumer load for hands-on energy-loss calculations. Safe low-voltage operation is suitable for classroom instruction. Requires a 16VAC 500mA AC/AC external wall adapter (not included).
