- Determine the magnitude and direction of a magnetic field at any point in space
- Easy-to-use sensor with wireless connectivity for real-time data collection
- Compatible with multiple devices and software for seamless integration
- Durable design for use in various environments and applications
- Ideal for scientific research, classroom experiments, and industrial processes
IMPORTANT ?Çô FEDEX GROUND SHIPPING ONLY.
Product is NOT eligible for Free Shipping and other promotions.

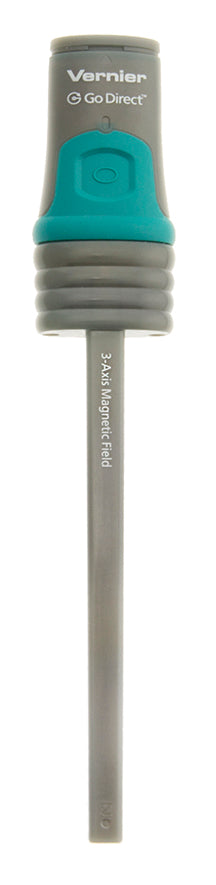

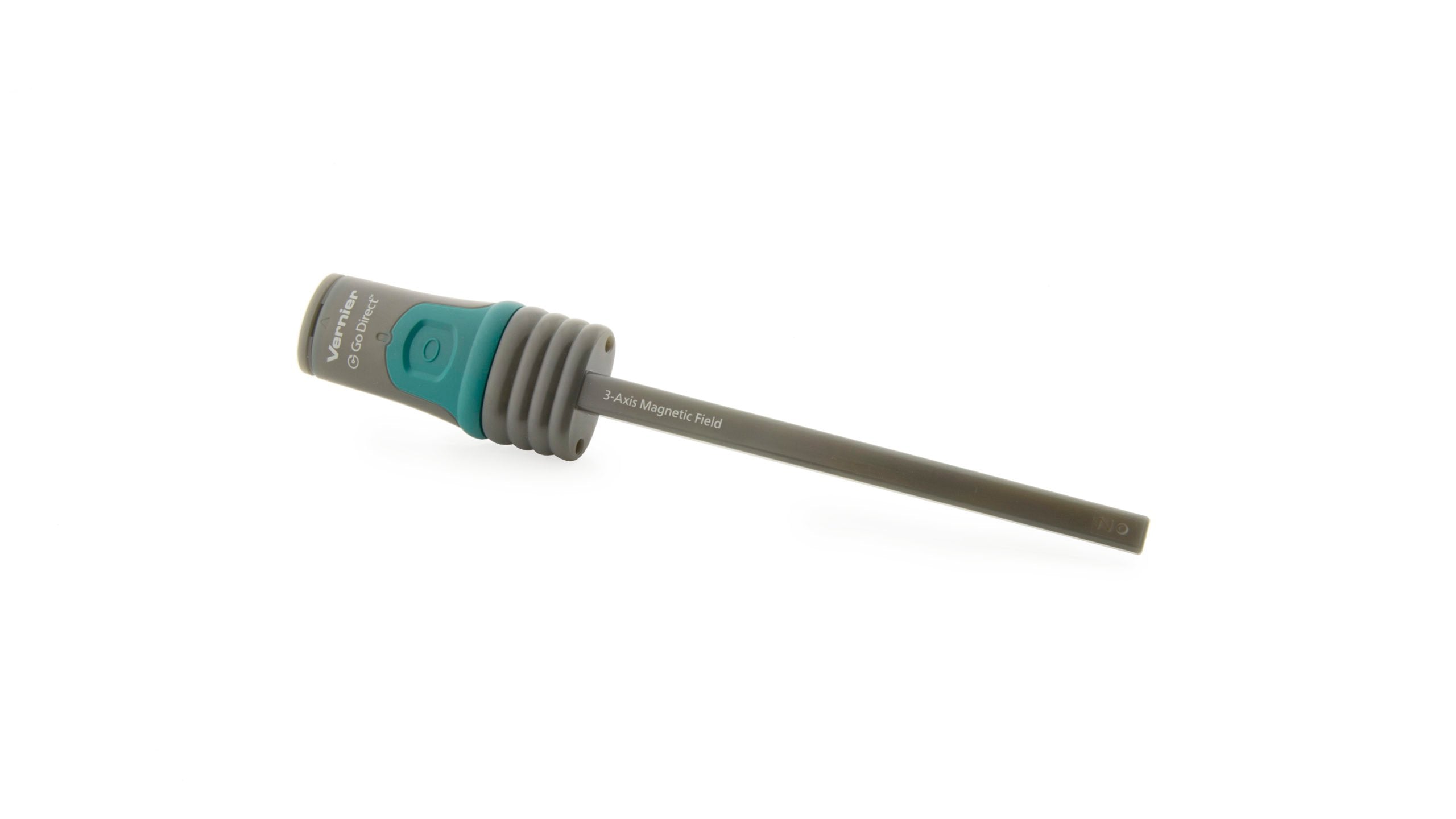

The Go Direct 3-Axis Magnetic Field Sensor measures the components of the magnetic field along three orthogonal axes. This allows you to determine the magnitude and direction of the magnetic field at any point in space. If desired, measure the field along only two axes, or even one axis, choosing the direction that is best for the experiment.
Wirelessly connect most Go Direct sensors to the Graphical Analysis Pro app in just seconds and collect, visualize, and interact with data in real time, from anywhere and on multiple devices
- Live data sharing during demonstrations. Great for in-person and remote learning?á
- Graph types, including bar graphs, histograms, and FFTs, plus the ability to plot categorical data
- Video-sensor data sync to replay, speed up, slow down, and pause recorded experiments at key moments in time
- Library of over 45 sample experiments ready to be analyzed by students as prep work, homework, or a makeup assignment
- User-defined curve fits, which allow advanced and more meaningful data analysis
Rechargeable Battery
The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from?áthe?áVernier Graphical Analysis?äó Pro?áapp, as well as?áLabQuest?«3. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting - no interruptions or inconvenience to you or your students.
Wireless or Wired
Go Direct sensors connect directly to your mobile device, Chromebook?äó, or computer using the?áVernier Graphical Analysis?äó?áPro?áapp - no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth?«?áwireless technology, allowing you to choose the solution best for your classroom or laboratory.
Specifications
- Measurement range: ??5 mT and ??130 mT
- Operating temperature: ?Çô40??C to 85??C
- Dimensions: 19 cm long, wand portion 12.2 cm long. Wand tapers from 0.8 cm square at handle to 0.7 cm square at tip. Designed to be placed inside a solenoid if needed.
- Calibration: Factory-calibrated, user does not need to calibrate.
- Connections:
- Wireless: Bluetooth
- Wired: USB
What's Included
- Go Direct 3-Axis Magnetic Field Sensor
- Micro USB Cable
